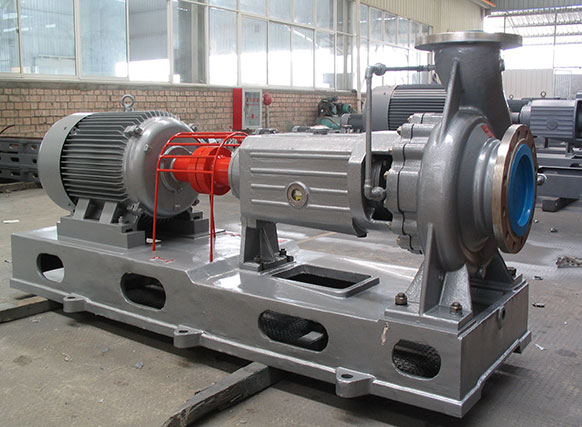

HCZ系列化工流程泵 / HCZ Series

HCZ系列耐腐蚀化工流程泵性能参数表(5)
发布时间:2019-10-26 浏览次数：2241


规格
性能参数
配用电机（按照介质比重）
汽蚀余量
m req
进口法兰直径

转速

r/min

叶轮型式

流量

(m3/h)

扬程

(m)

效率

%

轴功率

kw

γ=1.0
γ=1.35
γ=1.84
80-315
1450
A
100
32
72.5
12.02
Y160L-4/15
Y180M-4/18.5
Y200L-4/30
1.3
125
B
95
30
72.5
10.7
Y160M-4/11
Y160L-4/15
Y180L-4/22
C
85
24
72.5
7.66
Y160M-4/11
Y160M-4/11
Y160L-4/15
D
70
18
72.5
4.73
Y132S-4/5.5
Y132M-4/7.5
Y160M-4/11
2900
A
200
130
76.5
92.52
Y315S-2/110
Y315M1-2/132
Y315L-2/180
5.5
125
B
180
125
76.5
80.07
Y280M-2/90
Y315S-2/110
Y315M2-2/160
C
160
100
76.5
56.94
Y280S-2/75
Y280M-2/90
Y315S-2/110
D
150
75
76.5
40.03
Y225M-2/45
Y250M-2/55
Y280S-2/75
80-400
1450
A
105
52
63
23.59
Y200L-4/30
Y225S-4/37
Y225M-4/45
1.2
125
B
100
50
63
21.6
Y180L-4/22
Y200L-4/30
Y225M-4/45
C
90
44
63
17.11
Y180M-4/18.5
Y200L-4/30
Y225S-4/37
D
80
38
63
13.14
Y160L-4/15
Y180M-4/18.5
Y200L-4/30
E
75
30
63
9.72
Y160M-4/11
Y160L-4/15
Y180M-4/18.5
100-200
1450
A
115
11
80
4.31
Y132S-4/5.5
Y132M-4/7.5
Y160M-4/11
1.2
125
B
100
10
80
3.4
Y112M-4/4
Y132S-4/5.5
Y132M-4/7.5
C
90
8
80
2.45
Y100L-4/3
Y112M-4/4
Y132S-4/5.5
D
80
6
80
1.63
Y100L1-4/2.2
Y100L2-4/3
Y112M-4/4
2900
A
220
45
81
33.27
Y200L2-2/37
Y225M-2/45
Y250M-2/55
4
125
B
200
40
81
26.89
Y200L1-2/30
Y200L2-2/37
Y250M-2/55
C
180
30
81
18.15
Y160L-2/18.5
Y200L1-2/30
Y200L2-2/37
D
150
25
81
12.6
Y160M2-2/15
Y160L-2/18.5
Y200L1-2/30
100-250
1450
A
130
20
75.5
9.37
Y160M-4/11
Y160L-4/15
Y180M-4/18.5
1.8
125
B
130
18
75.5
8.44
Y160M-4/11
Y160L-4/15
Y180M-4/18.5
C
120
14
75.5
6.06
Y132M-4/7.5
Y160M-4/11
Y160L-4/15
D
100
10
75.5
3.61
Y112M-4/4
Y132S-4/5.5
Y132M-4/7.5
2900
A
280
75
81.5
70.14
Y280S-2/75
Y132S-2/110
Y315M1-2/132
4.5
125
B
250
70
81.5
58.45
Y280S-2/75
Y280M-2/90
Y315S-2/110
C
230
55
81.5
42.25
Y225M-2/45
Y280S-2/75
Y280M-2/90
D
200
40
81.5
26.72
Y200L1-2/30
Y225M-2/45
Y250M-2/55
100-315
1450
A
132
32
72
15.97
Y180M-4/18.5
Y180L-4/22
Y200L-4/30
1.5
125
B
120
30
72
13.61
Y160L-4/15
Y180M-4/18.5
Y200L-4/30
C
100
26
72
9.83
Y160M-4/11
Y160L-4/15
Y180M-4/18.5
D
90
21
72
7.15
Y132M-4/7.5
Y160M-4/11
Y160M-4/15
2900
A
270
135
75.5
131.4
Y315M2-2/160
Y315L-2/180
Y3554-4/250
5
125
B
250
130
75.5
117.8
Y315M1-2/132
Y315M2-2/160
Y3553-4/220
C
230
100
75.5
82.93
Y280M-2/90
Y315M1-2/132
Y315M2-2/160
D
200
85
75.5
61.3
Y280S-2/75
Y280M-2/90
Y315M1-2/132
