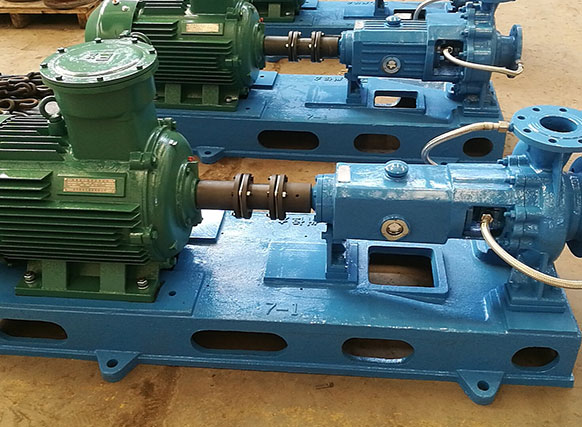

HCZ系列化工流程泵 / HCZ Series

HCZ系列耐腐蚀化工流程泵性能参数表(7)
发布时间:2019-10-26 浏览次数:1845


规格
性能参数
配用电机(按照介质比重)

汽蚀余量

m req

进口法兰直径

转速

r/min

叶轮型式

流量

(m3/h)

扬程

(m)

效率

%

轴功率

kw

γ=1.0
γ=1.35
γ=1.84
200-400
1450
A
650
52
84
109.5
Y315M1-4/132
Y315M2-4/160
Y315L-4/200
3.5
250
B
550
45
84
80.21
Y280M-4/90
Y315M1-4/132
Y315M2-4/160
C
500
40
84
64.82
Y280S-4/75
Y280M-4/90
Y315M1-4/132
D
450
30
84
43.75
Y225M-4/45
Y280S-4/75
Y280M-4/90
200-500
1450
A
700
75
81.5
175.4
Y315L-4/200
Y3554-4/250
4001-4/355
3
250
B
650
65
81.5
141.1
Y315M2-4/160
Y355L-4/200
Y3555-4/280
C
550
55
81.5
101
Y315S-4/110
Y315M2-4/160
Y315L-4/200
D
450
40
81.5
60.12
Y280S-4/75
Y230M-4/90
Y315M2-4/160
250-315
1450
A
950
22
86
66.16
Y280S-4/75
Y315S-4/110
Y230M-4/90
5
300
B
900
20
86
56.98
Y80S-4/75
Y280M-4/90
Y315S-4/110
C
800
16
86
40.52
Y225M-4/45
Y280S-4/75
Y280M-4/90
250-400
1450
A
1000
44
83
144.3
Y315M2-4/160
Y315L-4/200
Y280S-4/75
6
300
B
900
38
83
112.2
Y315M1-4/132
Y315M2-4/160
Y315L-4/200
C
850
30
83
83.63
Y280M-4/90
Y315M2-4/160
Y315M2-4/160
D
800
24
83
62.97
Y280S-4/75
Y315S-4/110
Y315M-4/132
250-500
1450
A
1200
80
85
307.5
Y3556-4/315
Y4003-4/450
Y4005-4/560
6
300
B
1100
70
85
246.6
Y3554-4/250
Y4001-4/355
Y4003-4/450
C
1000
55
85
176.1
Y3552-4/200
Y3554-4/250
Y4001-4/355
D
850
45
85
122.5
Y352M2-4/160
Y315L-4/200
Y3554-4/250
300-400
1450
A
1500
40
87
187.7
Y315L-4/200
Y3555-4/280
Y4001-4/355
6
350
B
1400
30
87
131.4
Y315M2-4/160
Y315L-4/200
Y3554-4/250
C
1300
25
87
101.7
Y315S-4/110
Y315M2-4/160
Y315L-4/200
D
1300
20
87
81.35
Y280M-4/90
Y315M1-4/132
Y315M2-4/160
300-500
1450
A
1700
70
83.5
388
Y4002-4/400
Y4005-4/560
Y4502-4/710
6
350
B
1500
60
83.5
293.4
Y3556-4/315
Y4002-4/400
Y4005-4/560
C
1300
50
83.5
211.9
Y3553-4/220
Y3556-4/315
Y4002-4/400
D
1100
40
83.5
143.5
Y315M2-4/160
Y3553-4/220
Y3555-4/280
