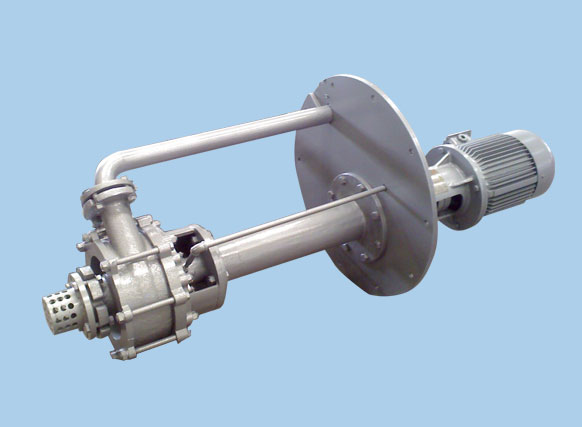

HY系列化工液下泵 / HY Series

HY化工液下泵性能参数表1
发布时间:2019-10-26 浏览次数：4263



规格
性能参数
配用电机(按照介质比重)
转速
叶轮型式
流量范围
扬程范围
流量
扬程
效率
轴功率

Capacity

(m3/h)

Head
(m)
Capacity
(m3/h)

Head

(m)

Efficiency

(%)

Input Power

(kw)

γ=1.0
γ=1.2
γ=1.5
50-32-160
1450
A
8.8 -13.2
6.5 -9
11
8
49
0.49
Y90S-4/1.1
Y90S-4/1.1
Y90L-4/1.5
B
8-12
5.6 -8
10
7
49
0.39
Y90S-4/1.1
Y90S-4/1.1
Y90L-4/1.5
C
7.2 -10.8
4.8 -7
9
6
49
0.30
Y90S-4/1.1
Y90S-4/1.1
Y90S-4/1.1
D
4.8 -7.2
3.2 -5
6
4
49
0.13
Y90S-4/1.1
Y90S-4/1.1
Y90S-4/1.1
E
4.8 -7.2
2.4 -5
6
3
49
0.10
Y90S-4/1.1
Y90S-4/1.1
Y90S-4/1.1
2900
A
16 -24
26.4 -34
20
33
60
2.99
Y112M-2/4
Y132S1-2/5.5
Y132S1-2/5.5
B
13.6 -20.4
20 -27
17
25
60
1.93
Y90L-2/2.2
Y100L-2/3
Y112M-2/4
C
12.0 -18.0
14.4 -20
15
18
60
1.23
Y90L-2/2.2
Y90L-2/2.2
Y100L-2/3
D
10.4 -15.6
9.6 -15
13
12
60
0.71
Y90L-2/2.2
Y90L-2/2.2
Y100L-2/3
E
10.4 -15.6
8.8 -14
13
11
60
0.65
Y90L-2/2.2
Y90L-2/2.2
Y100L-2/3
50-32-200
1450
A
8.0 -12.0
10.4 -14
10
13
47
0.75
Y90S-4/1.1
Y90L-4/1.5
Y90L-4/1.5
B
7.2 -10.8
9.6 -14
9
12
47
0.63
Y90S-4/1.1
Y90L-4/1.5
Y90L-4/1.5
C
6.4 -9.6
8-12
8
10
47
0.46
Y90S-4/1.1
Y90L-4/1.5
Y90L-4/1.5
D
6.4 -9.6
6.4 -9
8
8
47
0.37
Y90S-4/1.1
Y90L-4/1.5
Y90L-4/1.5
2900
A
16 -24
40 -53
20
50
51
5.34
Y132S2-2/7.5
Y132S2-2/7.5
Y160M2-2/15
B
14.4 -21.6
38.4 -52.8
18
48
51
4.61
Y132S1-2/5.5
Y132S2-2/7.5
Y160M1-2/11
C
12.8 -29.2
32 -45
16
40
51
3.42
Y112M-2/4
Y132S1-2/5.5
Y132S2-2/7.5
D
12-18
24 -35
15
30
51
2.40
Y100L-2/3
Y112M-2/4
Y132S1-2/5.5
50-32-250
1450
A
8.8 -13.2
15.2 -23
11
19
37
1.54
Y100L1-4/2.2
Y100L2-4/3
Y112M-4/4
B
8-12
14.4 -21
10
18
37
1.32
Y100L1-4/2.2
Y100L2-4/3
Y100L2-4/3
C
7.2 -10.8
11.2 -15.8
9
14
37
0.93
Y100L1-4/2.2
Y100L1-4/2.2
Y100L2-4/3
D
6.4 -9.6
8-13
8
10
37
0.59
Y100L1-4/2.2
Y100L1-4/2.2
Y100L1-4/2.2
2900
A
16 -24
64.8 -85
20
81
40
11.03
Y160M2-2/15
Y160M2-2/15
Y180M-2/22
B
16 -24
56.8 -75
20
71
40
9.66
Y160M1-2/11
Y160M2-2/15
Y160L-2/18.5
C
14.4 -21.6
48.8 -67
18
61
40
7.47
Y160M1-2/11
Y160M1-2/11
Y160M2-2/15
D
12-18
36.8 -50
15
46
40
4.70
Y132S1-2/5.5
Y132S2-2/7.5
Y160M1-2/11
65-40-160
1450
A
12-18
6.4 -10
15
8
60
0.54
Y90S-4/1.1
Y90S-4/1.1
Y90L-4/1.5
B
12-18
5.6 -8
15
7
60
0.48
Y90S-4/1.1
Y90S-4/1.1
Y90L-4/1.5
C
11.2 -16.8
4.8 -7
14
6
60
0.38
Y90S-4/1.1
Y90S-4/1.1
Y90S-4/1.1
D
9.6 -14.4
3.2 -6
12
4
60
0.22
Y90S-4/1.1
Y90S-4/1.1
Y90S-4/1.1
2900
A
24 -36
25.6 -35
30
32
63
4.15
Y132S1-2/5.5
Y132S2-2/7.5
Y132S2-2/7.5
B
22.4 -33.6
22.4 -31
28
28
63
3.39
Y112M-2/4
Y132S1-2/5.5
Y132S2-2/7.5
C
12.8 -19.2
20 -27.5
16
25
60
1.81
Y90L-2/2.2
Y100L-2/3
Y112M-2/4
D
11.2 -16.8
13.6 -18
14
17
60
1.08
Y90S-2/1.5
Y90L-2/2.2
Y100L-2/3
65-40-200
1450
A
12.8 -19.2
9.6 -14
16
12
57
0.92
Y90S-4/1.1
Y90L-4/1.5
Y100L1-4/2.2
B
12-18
8.8 -12
15
11
57
0.79
Y90S-4/1.1
Y90L-4/1.5
Y100L1-4/2.2
C
11.20 -16.8
6.4 -9.5
14
8
57
0.53
Y90S-4/1.1
Y90S-4/1.1
Y90L-4/1.5
D
9.6 -14.4
5.6 -8.6
12
7
57
0.40
Y90S-4/1.1
Y90S-4/1.1
Y90S-4/1.1
2900
A
27.2 -40.8
38.4 -52
34
48
60
7.40
Y160M1-2/11
Y160M1-2/11
Y160M2-2/15
B
24 -36
36.8 -50
30
46
60
6.26
Y132S2-2/7.5
Y160M1-2/11
Y160M2-2/15
C
20.8 -31.2
28.8 -40
26
36
60
4.25
Y132S1-2/5.5
Y132S2-2/7.5
Y160M1-2/11
D
17.6 -26.4
23.2 -32
22
29
60
2.89
Y112M-2/4
Y112M-2/4
Y132S1-2/5.5
65-40-250
1450
A
16 -24
16.8 -23
20
21
48
2.38
Y100L2-4/3
Y112M-4/4
Y132S-4/5.5
B
14.4 -21.6
16 -22
18
20
48
2.04
Y100L1-4/2.2
Y100L2-4/3
Y112M-4/4
C
12.8 -19.2
12 -16.5
16
15
48
1.36
Y100L1-4/2.2
Y100L1-4/2.2
Y100L2-4/3
D
10.4 -15.6
9.6 -14
13
12
48
0.88
Y100L1-4/2.2
Y100L1-4/2.2
Y100L1-4/2.2
2900
A
28.8 -43.2
68 -93
36
85
50
16.66
Y180M-2/22
Y200L1-2/30
Y200L2-2/37
B
27.2 -40.8
64 -88
34
80
50
14.81
Y160L-2/18.5
Y180M-2/22
Y200L1-2/30
C
24.0 -36.0
52 -70
30
65
50
10.62
Y160M1-2/11
Y160M2-2/15
Y180M-2/22
D
20.8 -31.2
40 -55
26
50
50
7.08
Y132S2-2/7.5
Y160M1-2/11
Y160M2-2/15
65-40-315
1450
A
17.6 -26.4
27.2 -36
22
34
45
4.52
Y132S-4/5.5
Y132M-4/7.5
Y160M-4/11
B
17.6 -26.4
24 -33
22
30
45
3.99
Y132S-4/5.5
Y132S-4/5.5
Y132M-4/7.5
C
16 -24
18.4 -25
20
23
45
2.78
Y100L2-4/3
Y112M-4/4
Y132S-4/5.5
D
14.4 -21.6
13.6 -18
18
17
45
1.85
Y100L1-4/2.2
Y100L2-4/3
Y112M-4/4
2900
A
36.8 -55.2
108 -139
46
136
50
34.06
Y200L2-2/37
Y250M-2/55
Y280S-2/75
B
35.2-52.8
100-136
44
127
50
30.42
Y200L2-2/37
Y225M-2/45
Y250M-2/55
C
32 -48
77 -104
40
97
50
21.12
Y180M-2/22
Y200L1-2/30
Y200L2-2/37
D
27.2 -40.8
65 -82
34
78
50
14.44
Y160M-2/15
Y180M-2/22
Y200L1-2/30
