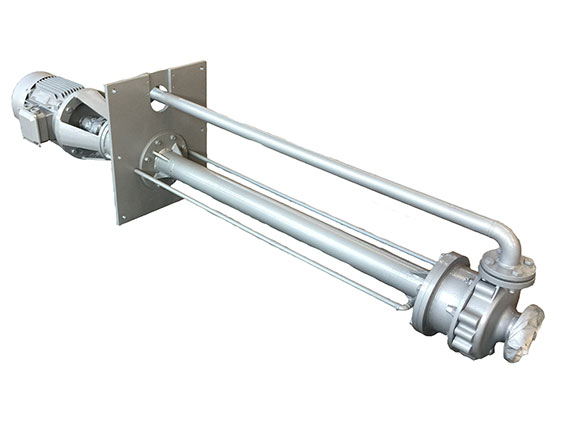

HY系列化工液下泵 / HY Series

HY化工液下泵性能参数表2
发布时间:2019-10-26 浏览次数：1816


规格

Pump Model

性能参数
配用电机(按照介质比重)

转速

Speed

叶轮型式
流量范围
扬程范围
流量
扬程
效率
轴功率

Capacity

(m3/h)

Head

(m)

Capacity

(m3/h)

Head

(m)

Efficiency

(%)

Input Power

(kw)

γ=1.0
γ=1.2
γ=1.5
80-50-160
1450
A
24 -36
5.6 -8.7
30
7
70
0.82
Y90L-4/1.5
Y100L1-4/2.2
Y100L2-4/3
B
20.8 -31.2
4.8 -7.6
26
6
70
0.61
Y90S-4/1.1
Y90S-4/1.1
Y90L-4/1.5
C
19.2 -28.8
4 -7.1
24
5
70
0.47
Y90S-4/1.1
Y90S-4/1.1
Y90L-4/1.5
D
16 -24
3.2 -5
20
4
70
0.31
Y90S-4/1.1
Y90S-4/1.1
Y90S-4/1.1
2900
A
44 -66
25.6 -35
55
32
73
6.56
Y160M1-2/11
Y160M1-2/11
Y160M2-2/15
B
40 -60
22.4 -30
50
28
73
5.22
Y132S2-2/7.5
Y132S2-2/7.5
Y160M2-2/15
C
36.8 -55.2
19.2 -26.8
46
24
73
4.12
Y132S1-2/5.5
Y132S2-2/7.5
Y160M1-2/11
D
32 -48
12.8 -17.5
40
16
73
2.39
Y132S1-2/5.5
Y132S1-2/5.5
Y132S1-2/5.5
80-50-200
1450
A
27.2 -40.8
10.4 -14.3
34
13
70
1.72
Y100L2-4/3
Y112M-4/4
Y112M-4/4
B
27.2 -40.8
8.8 -13
34
11
70
1.45
Y100L1-4/2.2
Y100L2-4/3
Y112M-4/4
C
24 -36
7.2 -10
30
9
70
1.05
Y90L-4/1.5
Y100L1-4/2.2
Y100L2-4/3
D
19.2 -28.8
5.6 -7.8
24
7
70
0.65
Y90S-4/1.1
Y90L-4/1.5
Y100L1-4/2.2
2900
A
52 -78
43 -59
65
54
72
13.27
Y160M2-2/15
160L-2/18.5
Y200L1-2/30
B
52 -78
36 -51
65
46
72
11.30
Y160M2-2/15
160L-2/18.5
Y180M-2/22
C
40 -60
30 -40
50
37
72
6.99
Y132S2-2/7.5
Y160M1-2/11
Y160M2-2/15
D
32 -48
23 -32
40
29
72
4.39
Y132S1-2/5.5
Y132S2-2/7.5
Y160M1-2/11
80-50-250
1450
A
27.2 -40.8
16 -22
34
20
59
3.14
Y112M-4/4
Y132S-4/5.5
Y132SM--4/7.5
B
24 -36
15 -21
30
19
59
2.63
Y100L2-4/3
Y112M-4/4
Y132S-4/5.5
C
20.8 -31.2
12 -16.5
26
15
59
1.80
Y100L1-4/2.2
Y100L2-4/3
Y112M-4/4
D
19.2 -28.8
8.8 -12.6
24
11
59
1.22
Y90L-4/1.5
Y100L1-4/2.2
Y100L2-4/3
2900
A
52 -78
64.8 -85
65
81
64
22.39
Y200L1-2/30
Y200L2-2/37
Y225M-2/45
B
48 -72
60.8 -80
60
76
64
19.40
Y180M-2/22
Y200L1-2/30
Y200L2-2/37
C
44 -66
51.2 -70
55
64
64
14.97
Y160M2-2/15
Y180M-2/22
Y200L1-2/30
D
36 -54
44.8 -62
45
56
64
10.72
Y160M2-2/15
Y160M2-2/15
Y180M-2/22
80-50-315
1450
A
33.6 -50.4
28.8 -38
42
36
58
7.10
Y132M-4/7.5
Y160M-4/11
Y160L-4/15
B
33.6 -50.4
25.6 -35
42
32
58
6.31
Y132M-4/7.5
Y160M-4/11
Y160L-4/15
C
32 -48
20.8 -28
40
26
58
4.88
Y132S-4/5.5
Y132M-4/7.5
Y160M-4/11
D
28.8 -43.2
16 -22
36
20
58
3.38
Y112M-4/4
Y132S-4/5.5
Y132M-4/7.5
2900
A
64 -96
112 -142
80
140
60
50.81
Y250M-2/55
Y280S-2/75
Y280M-2/90
B
60 -90
108 -132
75
135
60
45.94
Y250M-2/55
Y280S-2/75
Y280M-2/90
C
56 -84
88 -121
70
110
60
34.94
Y200L2-2/37
Y250M-2/55
Y280S-2/75
D
52 -78
68 -93.5
65
85
60
25.07
Y200L1-2/30
Y200L2-2/37
Y225M-2/45
100-65-160
1450
A
40 -60
6.4 -8.8
50
8
68
1.60
Y100L1-4/2.2
Y100L2-4/3
Y112M-4/4
B
38.4 -57.6
5.6 -7.7
48
7
68
1.35
Y90L-4/1.5
Y100L1-4/2.2
Y100L2-4/3
C
36.8 -55.2
4.8 -6.6
46
6
68
1.10
Y90L-4/1.5
Y100L1-4/2.2
Y100L2-4/3
D
30.4 -45.6
3.2 -4.4
38
4
68
0.61
Y90S-4/1.1
Y90L-4/1.5
Y100L1-4/2.2
2900
A
80 -120
25.6 -35
100
32
74
11.77
Y160M2-2/15
Y160L-2/18.5
Y180M-2/22
B
72 -108
25.6 -35
90
32
74
10.59
Y160M2-2/15
Y160M2-2/15
Y160L-2/18.5
C
72 -108
19.2 -26.8
90
24
74
7.95
Y160M1-2/11
Y160M2-2/15
Y160M2-2/15
D
64 -96
11.2 -15.6
80
14
74
4.12
Y132S1-2/5.5
Y132S2-2/7.5
Y160M1-2/11
100-65-200
1450
A
40 -60
10.4 -14.3
50
13
73
2.42
Y100L2-4/3
Y112M-4/4
Y132S-4/5.5
B
36.8 -55.2
9.6 -13.2
46
12
73
2.06
Y100L1-4/2.2
Y100L2-4/3
Y112M-4/4
C
33.6 -50.4
8-11
42
10
73
1.57
Y100L2-4/3
Y100L2-4/3
Y112M-4/4
D
28.8 -43.2
5.6 -7.7
36
7
73
0.94
Y90L-4/1.5
Y100L1-4/2.2
Y100L2-4/3
2900
A
80 -120
43.2 -57
100
54
73
20.14
Y180M-2/22
Y200L1-2/30
Y200L2-2/37
B
72 -108
40 -55
90
50
73
16.78
Y180M-2/22
Y200L1-2/30
Y200L1-2/30
C
72 -108
32 -44
90
40
73
13.42
160L-2/18.5
Y180M-2/22
Y200L1-2/30
D
56 -84
24 -33
70
30
73
7.83
Y160M1-2/11
Y160M2-2/15
160L-2/18.5
100-65-250
1450
A
43.2 -64.8
16.8 -23
54
21
67
4.61
Y132S-4/5.5
Y132M-4/7.5
Y160M-4/11
B
40 -60
16 -22
50
20
67
4.06
Y132S-4/5.5
Y132M-4/7.5
Y132M-4/7.5
C
36.8 -55.2
12.8 -17
46
16
67
2.99
Y112M-4/4
Y132S-4/5.5
Y132M-4/7.5
D
32 -48
8-11
40
10
67
1.63
Y90L-4/2.2
Y100L-4/3
Y112M-4/4
2900
A
92 -138
68 -90
115
85
71
37.48
Y225M-2/45
Y250M-2/55
Y280S-2/75
B
92 -138
60 -82.5
115
75
71
33.07
Y200L2-2/37
Y225M-2/45
Y280S-2/75
C
80 -120
52 -71.5
100
65
71
24.92
Y200L1-2/30
Y200L2-2/37
Y225M-2/45
D
64 -96
40 -55
80
50
71
15.34
160L-2/18.5
Y180M-2/22
Y200L1-2/30
100-65-315
1450
A
51.2 -76.8
25.6 -35.2
64
32
62
8.99
Y160M-4/11
Y160L-4/15
Y180M-4/18.5
B
48.8 -73.2
24 -33
61
30
62
8.03
Y160M-4/11
Y160M-4/11
Y160M-4/15
C
44.8 -67.2
22.4 -30.8
56
28
62
6.88
Y132M-4/7.5
Y160M-4/11
Y160L-4/15
D
43.2 -64.8
19.2 -26.4
54
24
62
5.69
Y132M-4/7.5
Y160M-4/11
Y160M-4/11
E
40 -60
16 -22
50
20
62
4.39
Y132S-4/5.5
Y132M-4/7.5
Y160M-4/11
F
33.6 -50.4
12.8 -17.6
42
16
62
2.95
Y112M-4/4
Y132S-4/5.5
Y132M-4/ 7.5
2900
A
108 -162
108 -141
135
135
66
75.17
Y280M-2/90
Y315S-2/110
Y315M2-2/160
B
104 -156
100 -133
130
125
66
67.02
Y280S-2/75
Y280M-2/90
Y315M1-2/132
C
92 -138
92 -125
115
115
66
54.55
Y250M-2/55
Y280S-2/75
Y315S-2/110
D
80 -132
88 -121
110
110
66
49.91
Y250M-2/55
Y280S-2/75
Y280M-2/90
E
72 -108
68 -93.5
90
85
66
31.55
Y200L2-2/37
Y225M-2/45
Y250M-2/55
F
60 -90
56 -77
75
70
66
21.65
Y180M-2/22
Y200L1-2/30
Y225M-2/45
